Description
CP PLUS Analog HD Cameras deliver reliable surveillance for both indoor and outdoor environments. Designed with durability and modern aesthetics, these cameras provide crystal-clear video quality and seamless installation. Equipped with advanced features such as enhanced night vision, digital zoom, and intelligent video analytics, they ensure efficient monitoring around the clock. Whether for homes, offices, shops, or commercial spaces, CP PLUS cameras offer dependable security, helping you stay connected and protected with smart, high-performance surveillance solutions.
Key Features
CP Plus Brand Aligned Partner.
Auto Back Light Comp..
WDR: DWDR.
ICR Support.
DVR: Two-Way Talk: Reuse Audio In/Out & RCA.
Motion Detection Supports.
Video Loss Supports.
Smart Phone: iPhone, iPad & Android Phone.
User Account: 128 Users.
Ethernet: RJ-45 Port (100m).
Product Details
Looking for a dependable security solution for your home, office, shop, warehouse, or industrial facility? The CP Plus 2.4MP 4 HD Camera Kit is designed to provide effective surveillance and peace of mind. This complete CCTV package helps protect your property and valuables with high-definition monitoring and reliable performance.

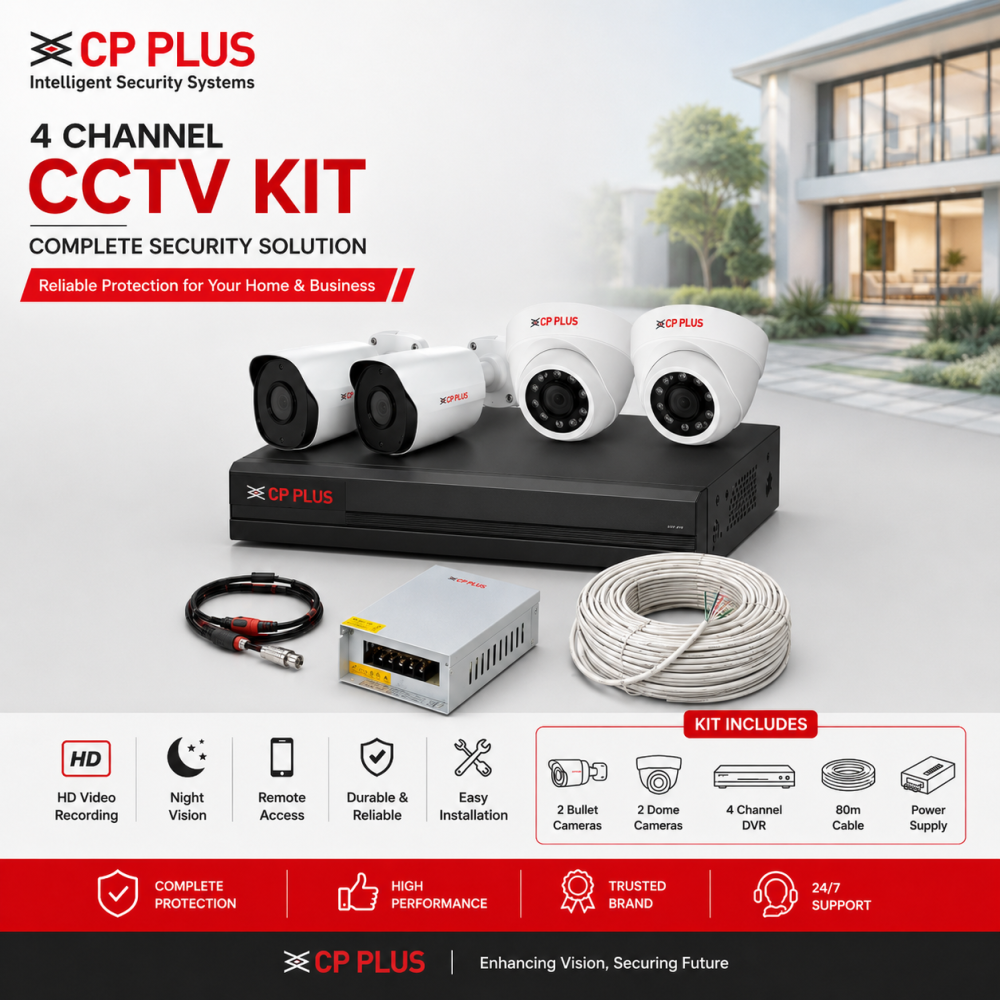

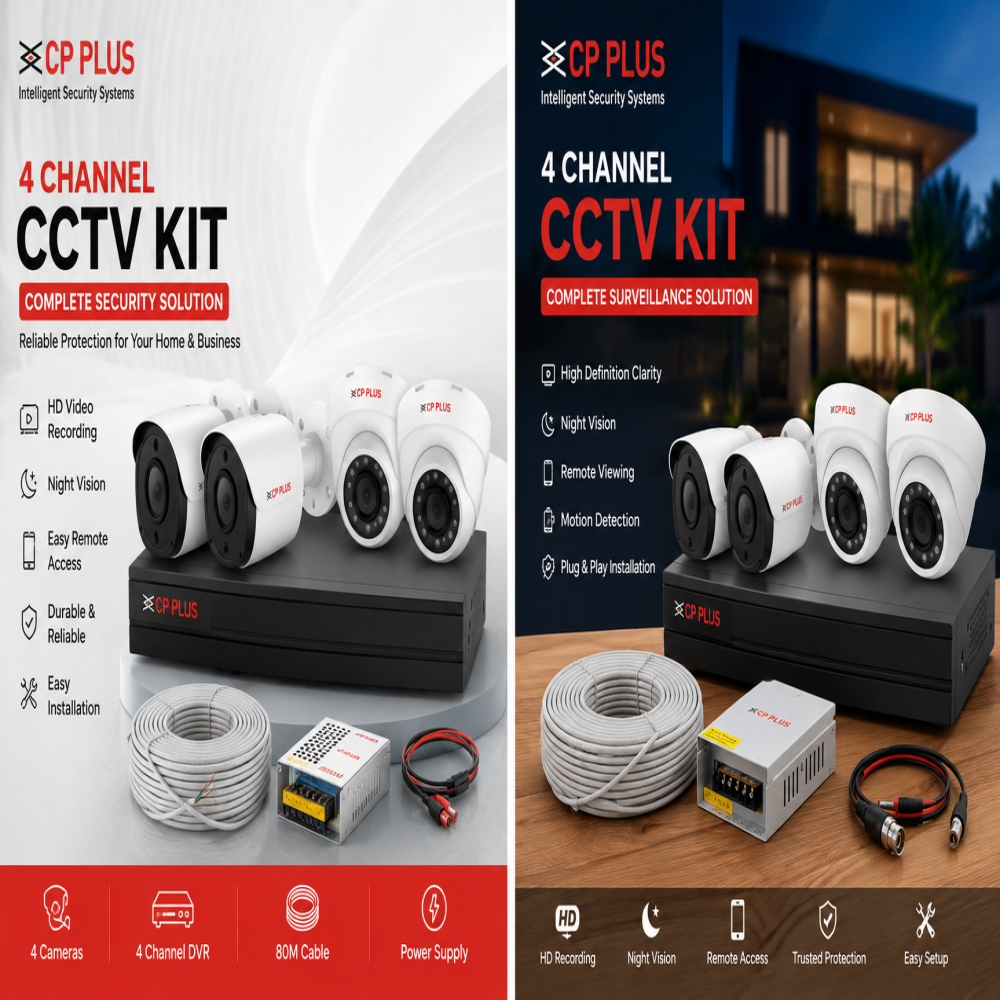

The kit includes 2Pcs HD Dome Cameras, 2Pcs HD Bullet Cameras, 1 Pc 4-Channel DVR (without hard disk), 1 Pc 5A Power Supply, 1 Pc 90 meters of Coaxial Cable, and 1 Pc 1.5-meter HDMI Cable, making installation simple and convenient. Suitable for both indoor and outdoor applications, this security system ensures continuous monitoring of your premises. Upgrade your security today with this comprehensive CP Plus CCTV kit and enjoy enhanced protection for what matters most.
Product Specifications
Brand | CP Plus |
Audio Output | DVR: 1 Channel & RCA |
Camera | DVR: IP Input: 4+1 & Each Channel Upto 2MP |
Channel | DVR: Video: 4 Channel & BNC |
Current | DVR: 1.5 Amp |
Customer Care Number | 8800952952 & Email Id: support@cpplusworld.com |
Dimensions | Dome Camera: 108x108x73.5 mm Bullet Camera: 154.6x71x71 mm DVR: 197x192x38 mm |
Frame rate | Dome Camera: 30 FPS (60Hz) & 25 FPS (50Hz) Bullet Camera: 30 FPS (60Hz) & 25 FPS (50Hz) |
Humidity | Dome Camera: 10-90% & (Humidity) <95% RH no Dew Bullet Camera: 10-90% & (Humidity) <95% RH no Dew |
Image Sensor | Dome Camera: 1/2.7 Bullet Camera: 1/2.7 |
Item Code | HD 4 Camera Kit 2.4 MP |
Lens | Dome Camera: 3.6 mm Bullet Camera: 3.6 mm |
Minimum Illumination | Dome Camera: Color (0.1Lux) & (0 Lux IR LED On) Bullet Camera: Color (0.1Lux) & (0 Lux IR LED On) |
Model No. | CP-VCK-TD22H-B1 |
Modes | DVR: Search: Time/Date, MD & Exact search (Accurate to Second) Backup: USB Device & Network |
Network protocols | DVR: HTTP, HTTPS, TCP/IP, IPv4/1Pv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF & CGI Conformant |
Number of LEDs | Dome Camera: 12 Pcs Bullet Camera: 12 Pcs |
Operating System | DVR: Embedded Linux |
Operating Temperature | Dome Camera: -20 to 50 deg C Bullet Camera: -20 to 50 deg C |
Package Contents | 2Pcs 2.4MP Dome Camera, 2Pcs Bullet Camera, 1 Pc 4 Channel DVR without Hard Disk, 1Pc 5A Power Supply, 90 m Co-axial Cable & 1.5m HDMI Cable |
Ports | DVR: Interface: 1 HDMI, 1 VGA & 2 USB 2.0 |
Power Consumption | Dome Camera: 0.4 W (2.5W After IR LED Powered on) Bullet Camera: 0.4 W (2.5W After IR LED Powered on) DVR: <10 W (without HDD) |
Protection Class | Bullet Camera: Weatherproof: IP66 |
Resolution | Dome Camera: 2.4MP Bullet Camera: 2.4MP |
S/N Ratio | Dome Camera: ≥41 dB Bullet Camera: ≥41 dB |
Shutter Speed | Dome Camera: 1/50s (1/60s)-1/100 & 000s (Auto/Fixed) Bullet Camera: 1/50s (1/60s)-1/100 & 000s (Auto/Fixed) |
Type | Dome Camera: Body: Dome Bullet Camera: Body: Bullet |
Video Output | DVR: 1 HDMI & 1 VGA |
Video Resolution | DVR: 1920x1080, 1280x1024 & 1280x720 |
Voltage | Dome Camera: 12 V DC @ ±10% Bullet Camera: 12 V DC @ ±15% DVR: 12 V DC |
Warranty | 1 Year |
Weight | Dome Camera: 0.25 kg Bullet Camera: 0.2 kg DVR: 0.55 kg (Without HDD) |
Working Temperature | DVR: -10 to 45 deg C @ 10-90% RH |
Country of origin | India |
Manufacturer Details | Aditya Infotech Ltd, A12 Sector 4 Noida |
Packer Details | Sooryavanshi Infotech - Shop No 02, Pasa Sons Market Ward No. 19 Shyam Cinema Road Purani Chowk Gopalganj 841428, Phone: +91 7371875515 |
Common/Generic Name | Camera Kit |
Dimensions LxWxH | 9x9x9 cm |
Weight | 290 g |
